Overview

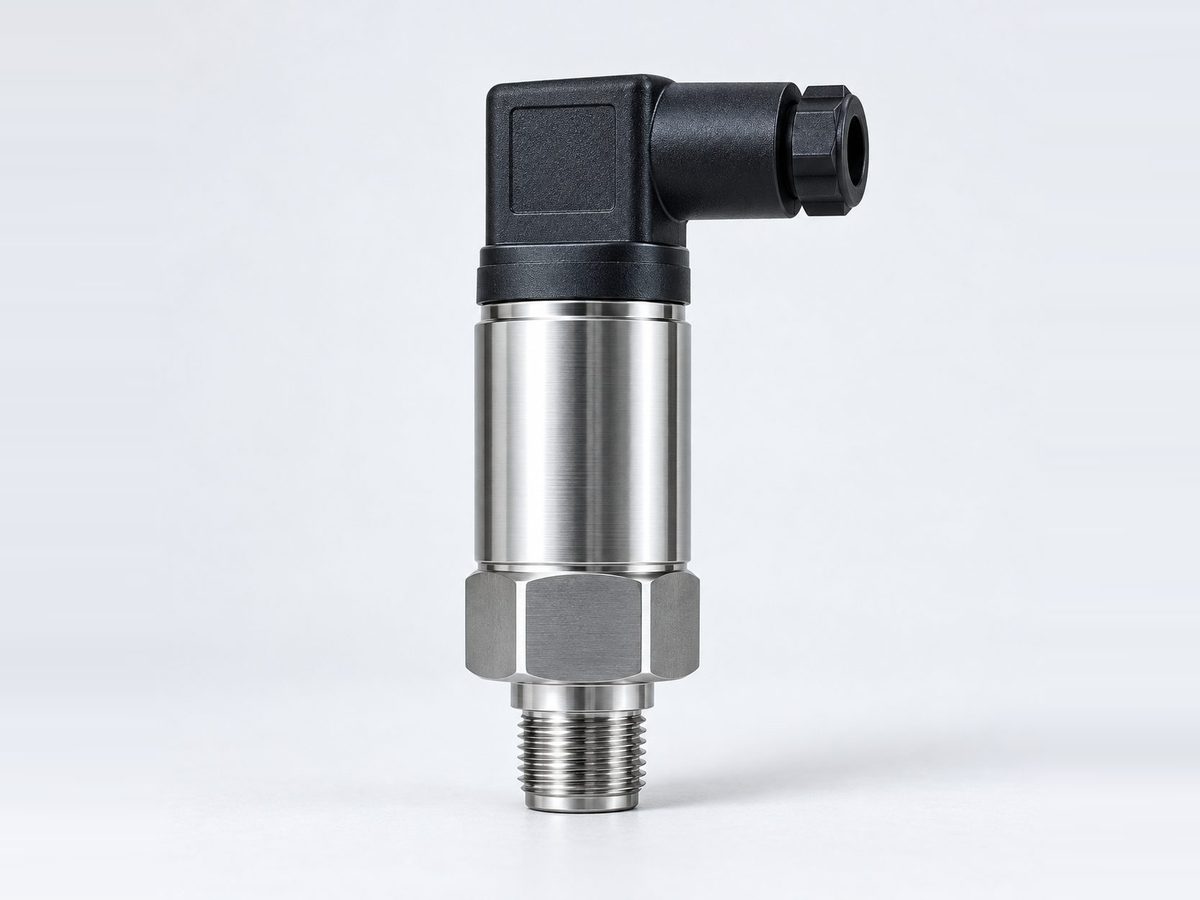

A stainless steel pressure transmitter with a 4-20 mA analogue output.
This pressure transmitter sends a steady 4-20 mA loop signal to your controller or display. Its welded stainless steel body suits most liquids and gases in process applications.
Choose from pressure ranges of 0-100 psi, 0-300 psi, or 0-600 psi. Accuracy is +/-0.25% of full scale. The 1/4 inch NPT connection fits standard fittings. Operating temperature is -4 to 185 F (-20 to 85 C). The IP65 rating protects against dust and water. It weighs 0.3 lb (0.14 kg).
Specifications
Detailed specifications for the Pressure transmitter.
- Pressure range
- 0-100 psi, 0-300 psi, 0-600 psi
- Material
- Stainless steel
- Output type
- Transmitter
- Application
- Process
- Accuracy
- +/-0.25% of full scale
- Connection size
- 1/4 inch NPT
- Operating temperature
- -4 to 185 F (-20 to 85 C)
- Protection rating
- IP65
- Weight
- 0.3 lb (0.14 kg)
- Output signal
- 4-20 mA
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
Process connection: 1/4 inch NPT.
Also in this catalogue with a 1/4 inch NPT connection: Series P100, Series P200, Series P300, Series P400, Series P500, Series P600.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Pressure transmitter at a glance.
A stainless steel pressure transmitter with a 4-20 mA analogue output.
Key features
- Pressure range: 0-100 psi
- Material: Stainless steel
- Output type: Transmitter
- Application: Process
- Accuracy: +/-0.25% of full scale
