Overview

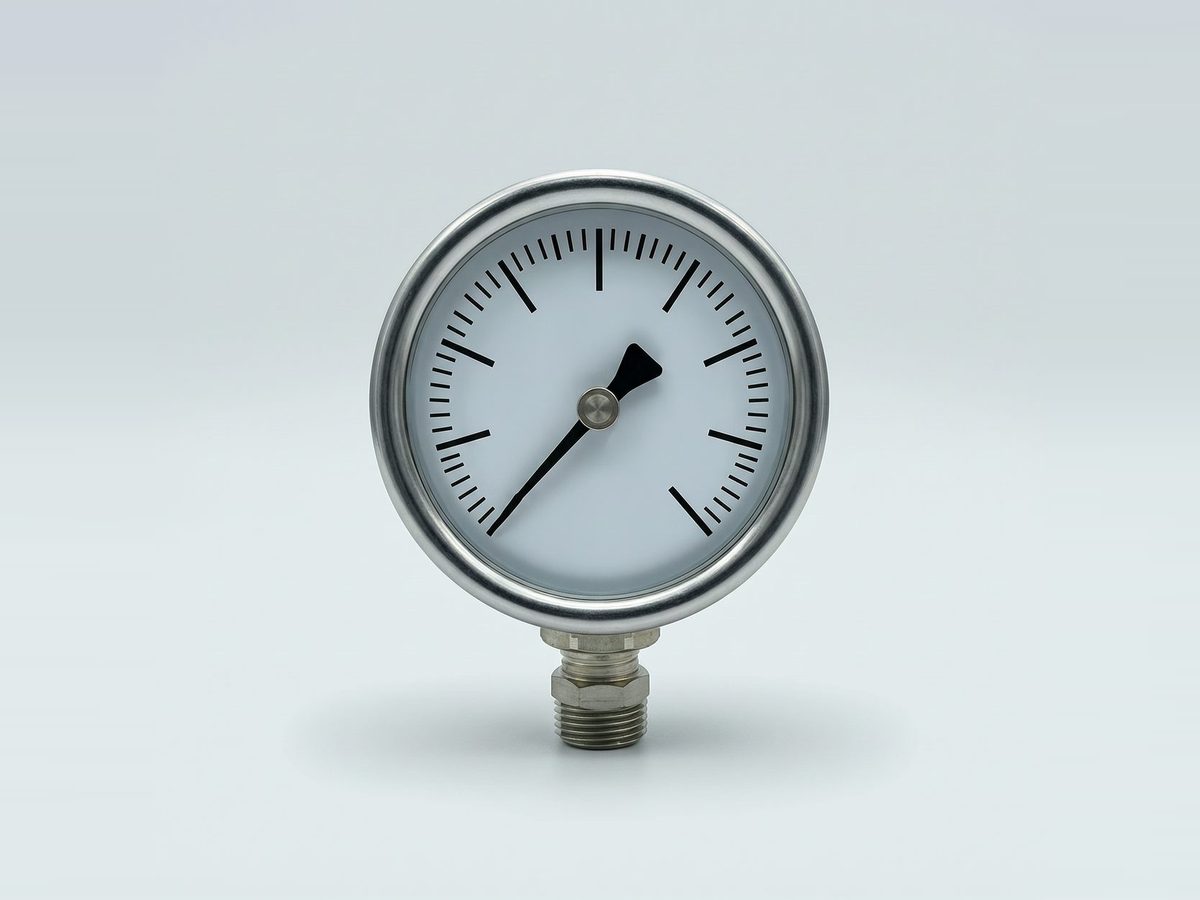

A process dial gauge offered in 2.5 inch and 4 inch sizes.
The Series P400 is a process dial gauge for general purpose and process applications. You can choose the 2.5 inch or 4 inch dial size, with the larger dial suited to reading from a distance. The glycerin fill improves vibration damping, and the stainless steel case with glass window provides IP65 protection.
When you select this gauge, consider the pressure range options of 0-100 psi, 0-300 psi, or 0-600 psi. Accuracy is +/-1.0% of full scale. It has a bottom mount 1/4 inch NPT connection and a black aluminum pointer.
Specifications
Detailed specifications for the Series P400.
- Pressure range
- 0-100 psi, 0-300 psi, 0-600 psi
- Dial size
- 2.5 inch, 4 inch
- Connection type
- Bottom mount
- Fill type
- Glycerin filled
- Material
- Stainless steel
- Output type
- Analog (dial)
- Application
- General purpose, Process
- Accuracy
- +/-1.0% of full scale
- Connection size
- 1/4 inch NPT
- Pointer
- Black aluminum
- Operating temperature
- -4 to 158 F (-20 to 70 C)
- Window
- Glass
- Vibration resistance
- Filled for improved vibration damping
- Protection rating
- IP65
- Weight
- 0.4 lb (0.18 kg), 1.1 lb (0.5 kg)
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
Process connection: 1/4 inch NPT, bottom mount.
Also in this catalogue with a 1/4 inch NPT connection: Pressure transmitter, Gauge snubber, Diaphragm seal.
