Overview
A handheld process meter for checking current and voltage loops in the field.

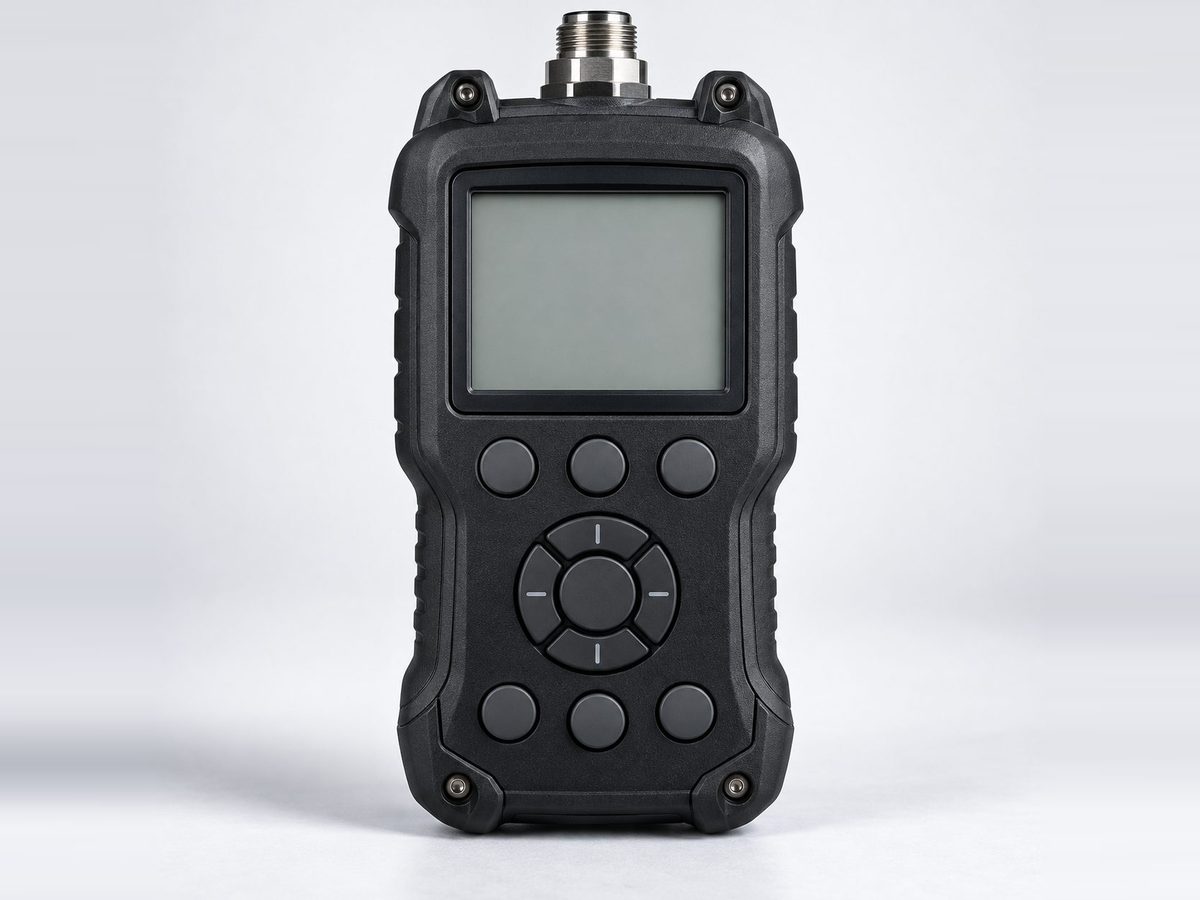

The Process meter is a handheld tool for checking current and voltage loops in the field. You can read and source a loop signal from one rugged handheld, which makes it quick to check a transmitter before you sign off a job.
When you choose this meter, the accuracy is +/-0.02% of reading and the resolution is 0.001 mA. The measuring range is 0-24 mA and 0-30 V. It has a backlit LCD, an IP67 protection rating, and runs on 4 AA batteries. It weighs 1.2 lb (0.54 kg).
Specifications
Detailed specifications for the Process meter.
- Material
- Plastic
- Output type
- Digital
- Application
- Process
- Accuracy
- +/-0.02% of reading
- Protection rating
- IP67
- Weight
- 1.2 lb (0.54 kg)
- Measuring range
- 0-24 mA, 0-30 V
- Resolution
- 0.001 mA
- Display
- Backlit LCD
- Power
- 4 AA batteries
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
This instrument has no process connection listed. Every specification is in the Specifications tab.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Process meter at a glance.
A handheld process meter for checking current and voltage loops in the field.
Key features
- Material: Plastic
- Output type: Digital
- Application: Process
- Accuracy: +/-0.02% of reading
- Protection rating: IP67
